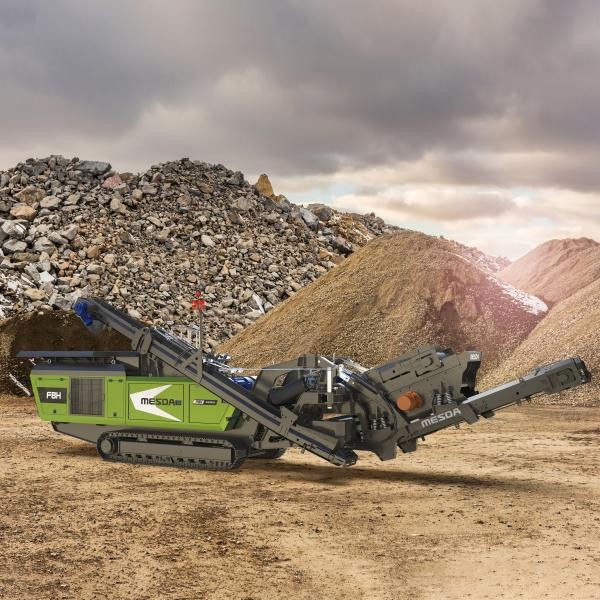

F8H

The MESDA F8H impact crusher adopts an diesel-electric
dual power drive mode, has Stage V emissions, and is
energy-saving, environmentally friendly, and efficient.
The powerful one-piece cast alloy rotor can crush large
materials with a compressive strength below 100 MPa. The
overall machine size has been specially designed and optimized
to meet road transportation requirements for the entire
machine, in accordance with various standards.

EMAIL

PRODUCT INFORMATION

Hybrid drive, can save fuel consumption by 20%

High strength (>500Mpa) alloy monoblock rotor

High rotation speed (rated up to 680rpm), high crushing efficiency

Max feeding size 400mm, capable for large-sized material crushing

Hydraulic adjustment of opening gap

Optional device for turning return conveyor to side product conveyor

Stage V

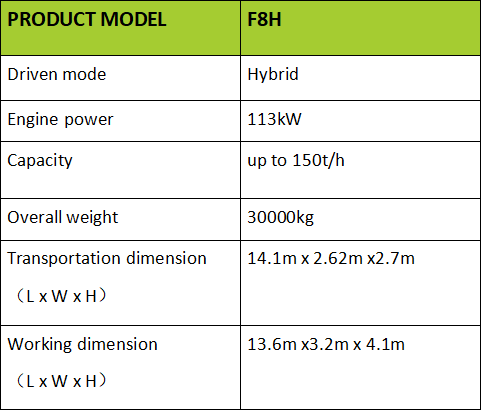

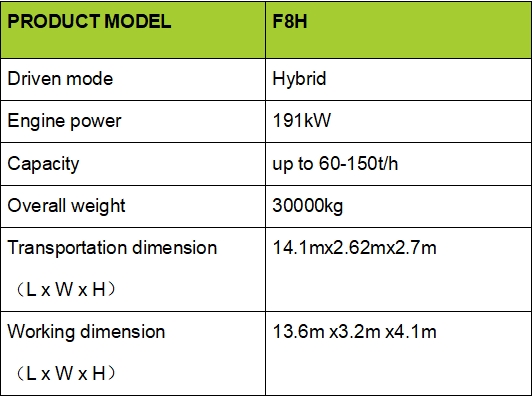

TECHNICAL DATA
